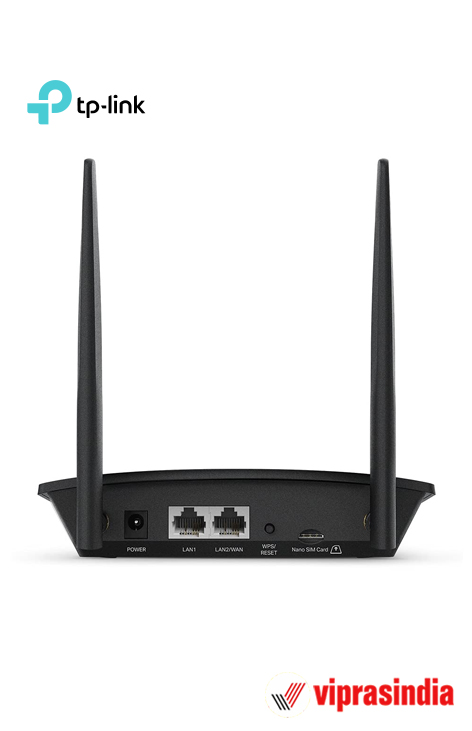

| Interface | 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port, 1 Nano SIM Card Slot |
|
|---|---|---|
| Button | WPS/Reset Button | |
| External Power Supply(EU) | 9V/0.85A | |
| Dimensions ( W x D x H ) | 6.06×4.49×1.42 in ( 154×114×36 mm) | |
| Antenna | 2 Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | ||
|---|---|---|
| Wireless Standards | IEEE 802.11b/g/n | |
| Frequency | 2.4 GHz | |
| Signal Rate | 300 Mbps | |
| Reception Sensitivity | 11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -68 dBm |
|
| Transmit Power | < 20 dBm (2.4 GHz) | |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
|
| WAN Failover | Yes | |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions | |
| Network Type | 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2555-2655MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
|
| SOFTWARE FEATURES | ||
|---|---|---|
| Security | IPv4 SPI Firewall, IP and MAC Address Binding | |
| Operating Modes | 3G/4G Router, Wireless Router | |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) | |
| Management | Local Management, Remote Management | |
| DHCP | Server, DHCP Client List, Address Reservation | |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ | |
| Dynamic DNS | DynDns, NO-IP | |
| Protocols | IPv4, IPv6 | |
| Guest Network | 2.4 GHz Guest Network | |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools | |
| OTHERS | ||
|---|---|---|
| Certification | CE, RoHS | |
| Package Contents | 300 Mbps Wireless N 4G LTE TL-MR100 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
|
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card |
|
| Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
| Country of Origin | China |
