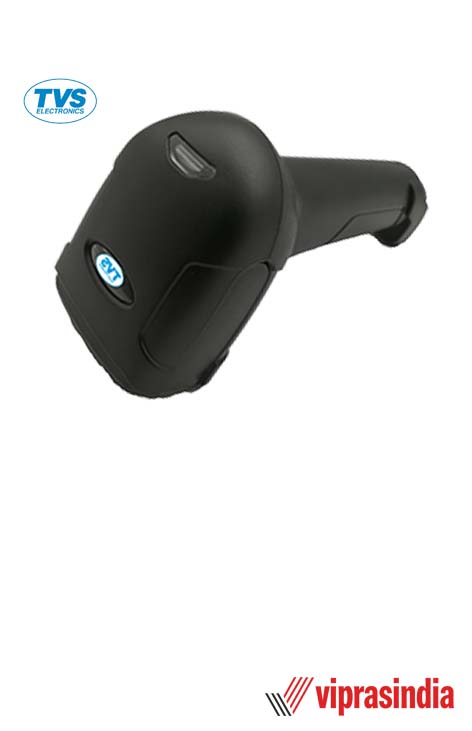

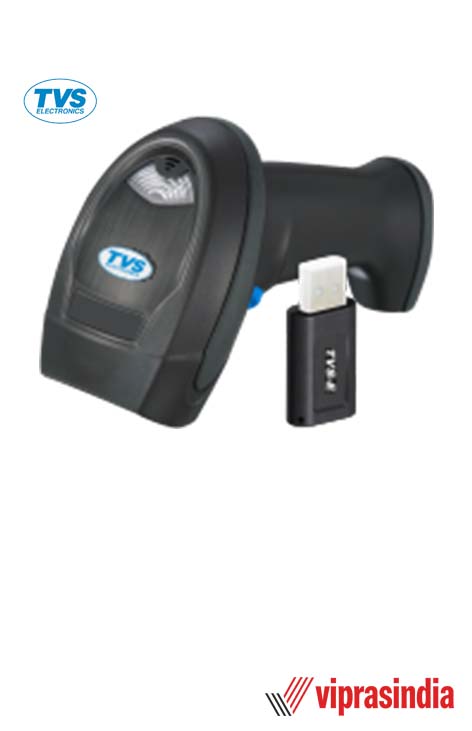

BS-I 201 S BT is an economical 2D Bluetooth scanner that provides wireless connectivity upto 25 metres of Line of Sight and is an affordable option for Small warehouses, Departmental stores, and Shopping malls.
ADVANTAGES
FEATURES
SCANS BOTH 1D
AND 2D BARCODES
CMOS
TECHNOLOGY
SIMPLE TO
OPERATE
Light source 617 nm LED Aimer, White LED
Supported symbologies 1D : EAN8,EAN13,UPCA,UPCE,CODE 39,CODE 93, CODE 128,EAN 128, Codabar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI Plessey, GS1 Databar, Industrial 25, Standard 25 etc 2D : QR code, Data Matrix, PDF 417, Aztec, Maxi code
Scan Type Image CMOS
Scan Speed 200 scans/sec
Scan angle Yaw 55°, Rotation 30°, Pitch 55°
Precision =5 mil
Contrast 20 %
Error rate Less than 1/5 million
Interface USB HID
Dimensions 102 mm * 71 mm * 177 mm
Wireless Transmission Distance ~ 25 mts
Storage mode Offline Storage mode: When scanner exits the connection range the data is automatically stored, Storage capacity is 512000 Characters
Inventory Storage mode : The scanner can enter the inventory storage mode, Storage capacity is 512000 Characters
Pairing mode One to one : One One scanning gun pairs one receiver
One scanner paired with Bluetooth mobile device
Receiving end Dedicated BT U disc receiver connecting android iOS mobile devices
Light level can resistive the interference of lamplight and sun shiningty
weight 223 g
Operating Temperature 20°C~50°C
Storage temperature 40°C~70°C
Relative Humidity 5%~95%
Battery working time 7 hrs
Battery Lithium battery , 2200 mA
Drop / Shock resistance Withstands a 1.5m drop from concrete
Voltage DC 5V ± 1%
Operating Current When scanning code =26 mA, Not scanning: = 280 mA
Standby current 0 mA
