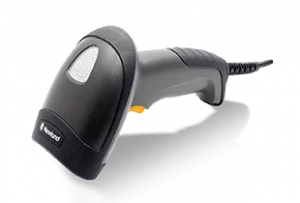

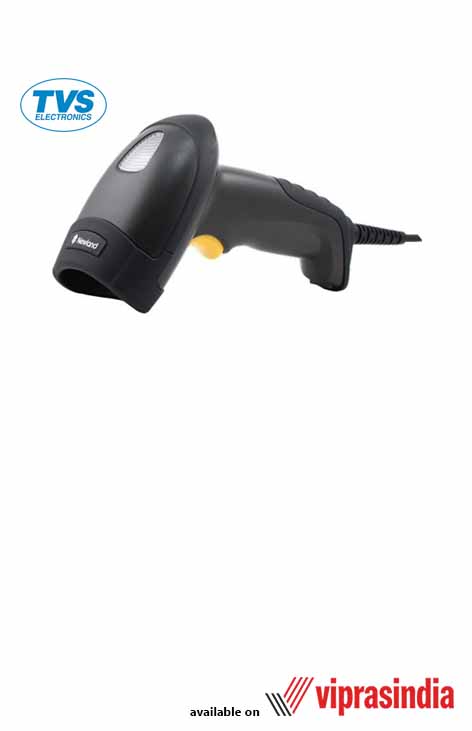

Barcode Scanners TVS NLS HR32

(5 Reviews)
Availability :
Out of Stock
13,000.00  8,299.00  (36 % Off)

Sorry, product is out of stock.

Description

Brand

Print Model

TVS Electronics

NLS HR32

Image Sensor 2500pixel linear imager

Illumination

Red LED/White LED

Aiming

Green LED

Symbologies 2D



PDF417, QR Code, Data Matrix, Aztec, Maxic ode, etc.

Postal

USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc.

1n

EAN13, EAN8, UPCA, UPCE, ISSN, ISBN, Codabar, Code128, Code93, ITF6, ITF14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSIPlessey, Plessey, etc
Resolution

3 mm

Typical Depth of Field

EAN 1313mil : 45mm to 510mm

Code 395mil : 75mm to 220mm

PDF417 6.7mil : 70mm to 215mm

Data Matrix 10mil : 50mm to 220mm

QR Code 15mil : 20mm to 330mm

Scan Angle

Scan AnglePitch:±55°, Roll:360°, Skew:±55°

Field of View

Horizontal 39°,Vertical 24°

Min.Symbol Contrast

25%

Interface

RS232,USB

Dimensions

113*w *730*d* 159h , 162g

Notification

Beep, LED indicator

Rated Power Consumption

89.6mW typical

Operating Voltage

5VDC±5%

Current@5VDC

Operating:238.2mAtypical, 260.5mAmax.

Standby : 71.3mA

Operating Temperature

20°Cto 60°C4°F to 140°F

Storage Temperature

40°Cto 70°C40°F to 158°F

Humidity

5%~95% noncondensing

ESD

±8 KV directdischarge ±15KV air discharge

Drop

1.5m

Sealing

Ip42

Certifications

FCC Part15 ClassB, CE EMC ClassB

Power Adapter



DC5V power adapter to power the HR3280with RS232 cable.
Country of Origin China








  • NLS HR32 scanner holds the capability of coherent scanning of small and high density 1D as well a 2D barcodes.  The sturdy exterior design makes it ideal for retail chains, Logistics, Express delivery services, Warehouse management and so on.

ADVANTAGES

  • CMOS imager with megapixel camera
  • 25% print contract and 3 mil resolution
  • Extensive data capture ability
  • Durable exterior with IP 42 sealing and 1.5m drop resistance
